Longspan Shelving

Short Description:

1. Longspan shelving is an economical and versatile shelving system, designed to store medium size and weight of cargoes for manual access in wide ranges of applications.

2. The main components include upright, step beam and metal panel.


Product Detail

Product Tags

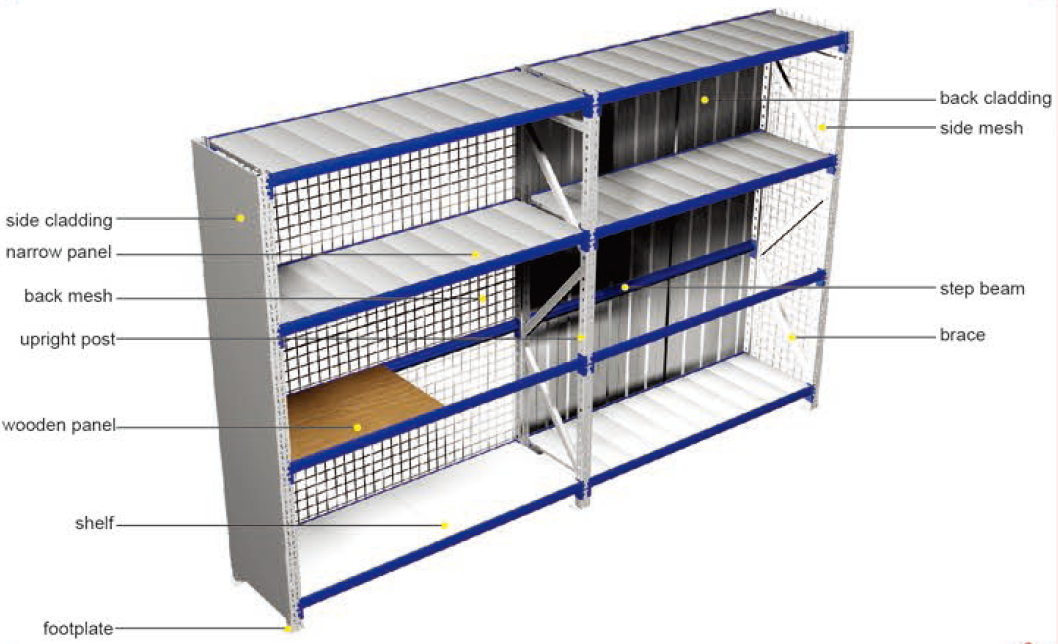

Racking Components

Product Analysis

Racking type: Longspan shelving
Material: Q235 Steel Certificate CE, ISO
Size: customized Loading: 200-800kg/level
Surface treatment: powder coating/galvanized Color: RAL color code
Pitch 50mm Place of origin Nanjing, China
Application: especially designed for the storage of hand loaded heavy products, such as machinery equipment, tools and boxes or totes of different sizes

① Simple structure

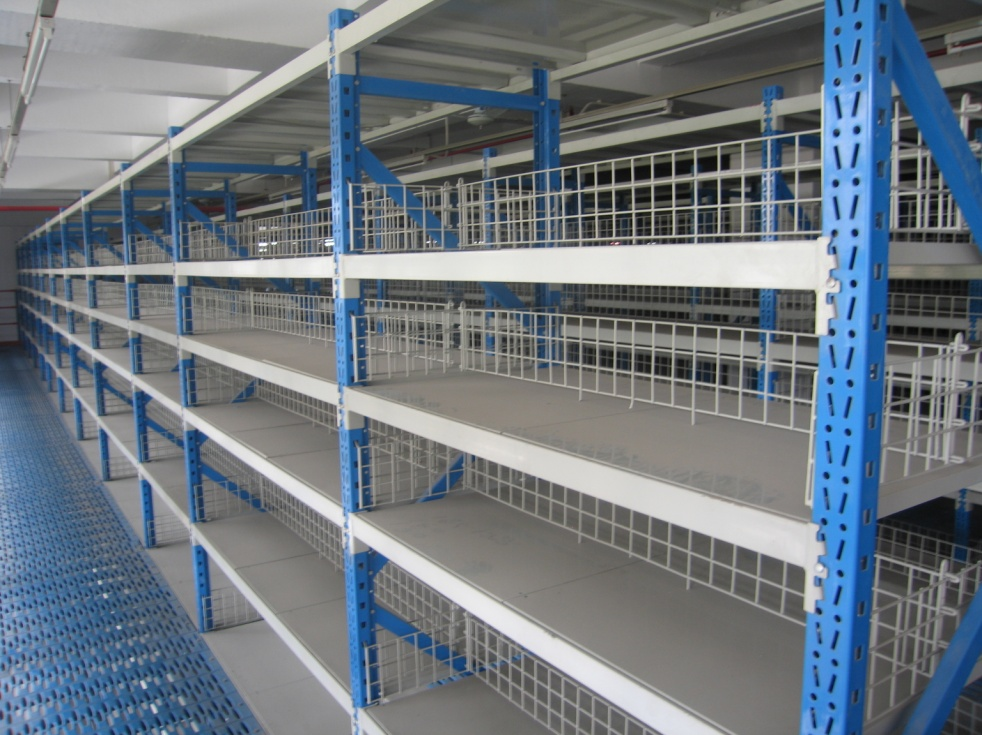

The structure of longspan shelving is similar as selective pallet racking, mainly consisting of frame, step beam and metal panel. The main difference is that the latter is for pallet storage operated by forklift, while the former is generally for carton/box/tote or bulk cargoes storage handled by manual.

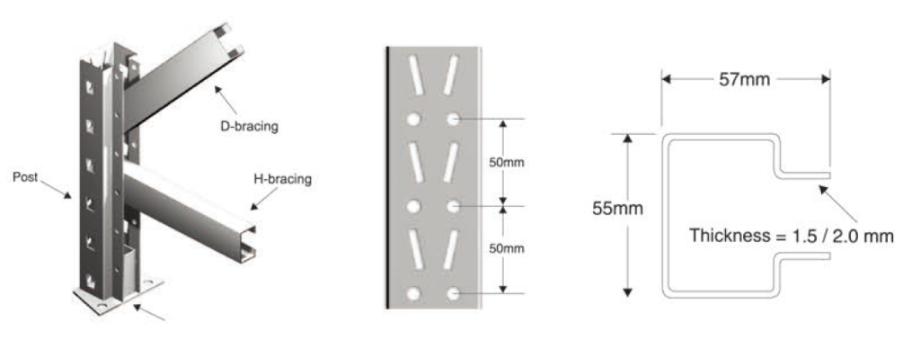

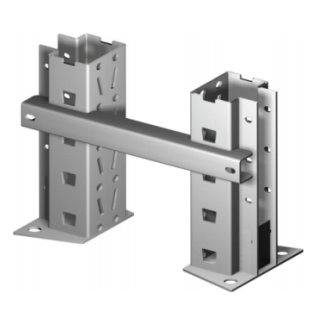

◆Frame Frame is made from upright, H bracing, D bracing and footplate. Upright section size is 55*57*1.5mm or 55*57*2.0mm thickness.

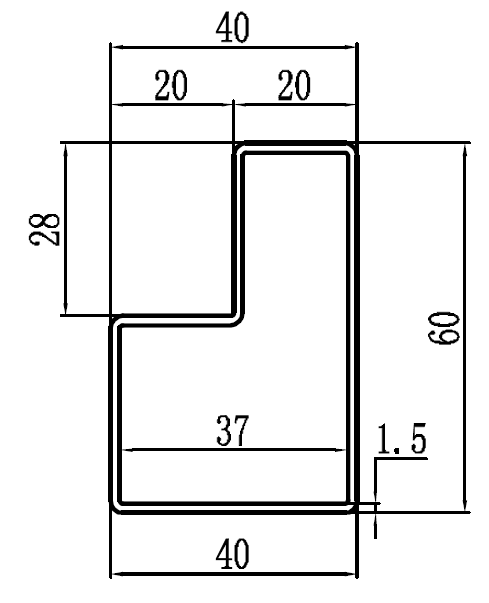

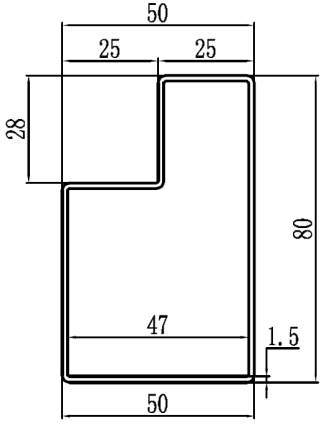

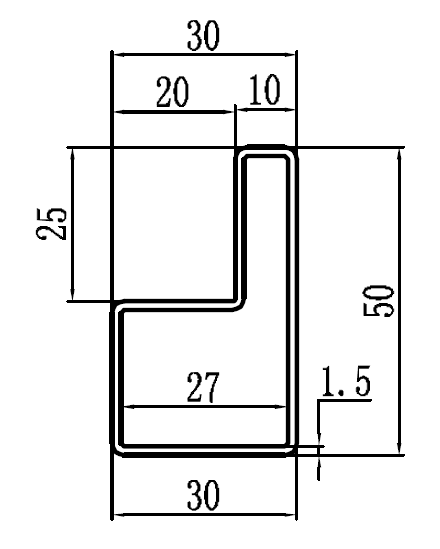

◆Step Beam The regular step beam section size involves:

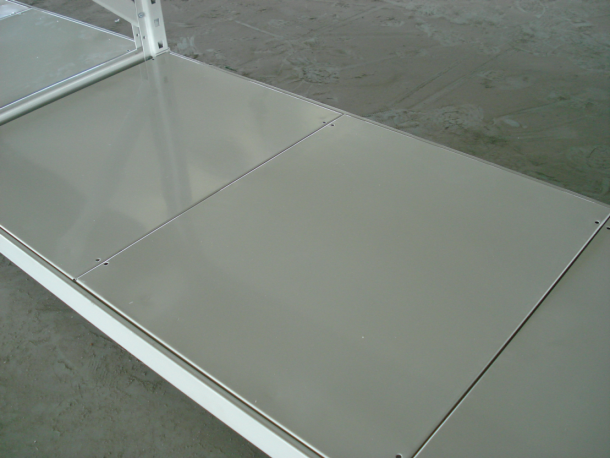

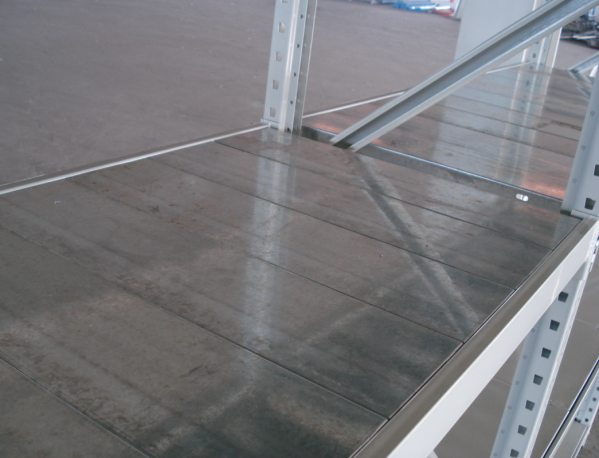

◆Metal Panel According to surface treatment, metal shelf can be divided into:

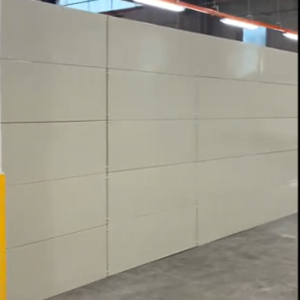

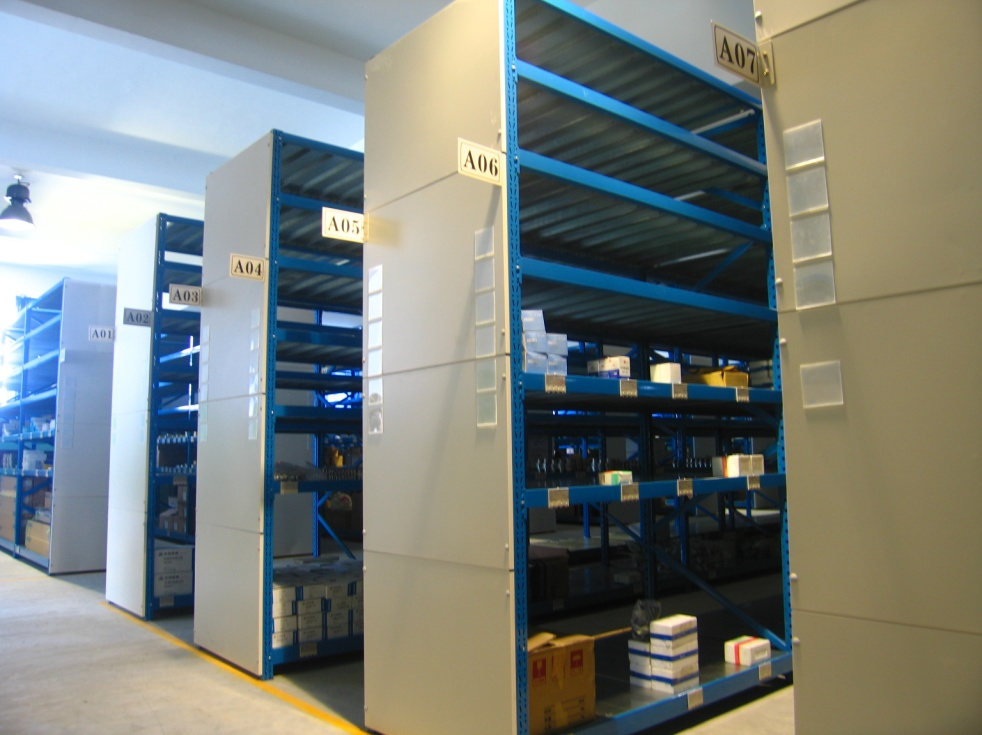

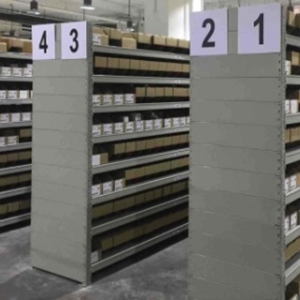

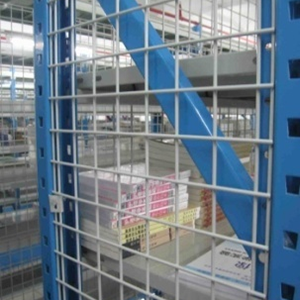

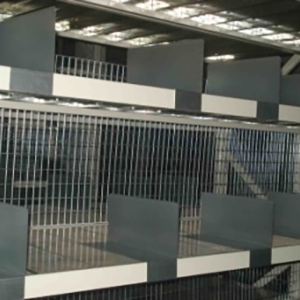

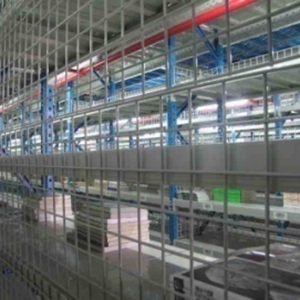

◆Accessories In addition to main components, there are some accessories for option according to actual storage requirement, such as: row spacer, side cladding, side mesh, back cladding, back mesh, divider and so on.

②Various possibilities of longspan shelving
In addition to regular purpose of shelving, longspan can be also used as:

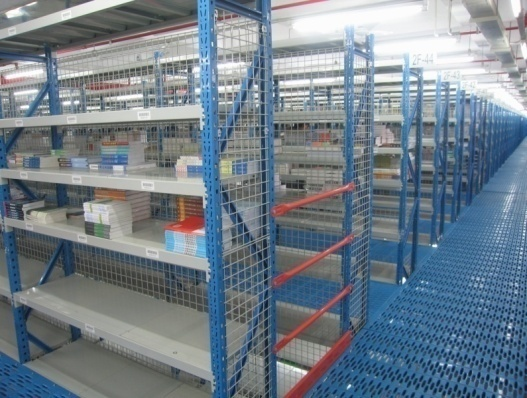

Multi-tier shelving By adding flooring beam, flooring deck, handrail, skirtboard, staircase, slide gate and some other accessories, multi-tier mezzanine can be constructed as two floors or more, making storage capacity double, triple or more.

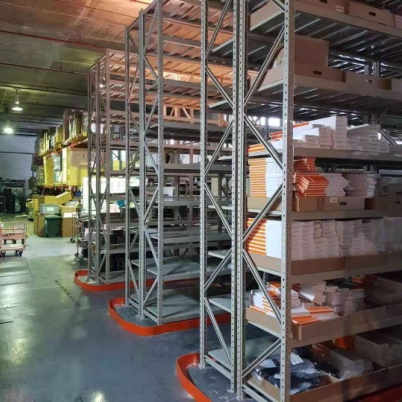

Narrow aisle shelving
Longspan shelving can be extended the application as high bay and narrow aisle shelving, which is a good solution of enlarging storage capacity while not extending warehouse area, by utilizing warehouse high space adequately. The shelving can be designed like 4m or 5m high, with narrow aisle like 1m width. By paving guide rail, people can drive lift-up truck in the aisle safely, and pick up high level cargoes by manual easily.
